Red Lion RJS-100-PREM 1 HP, 23 GPM, 115/230 Volt, Premium Cast Iron Shallow Well



Red Lion RJS-100-PREM 1 HP, 23 GPM, 115/230 Volt, Premium Cast Iron Shallow Well Jet Pump, Red, 602208. Disclamer - this is an open box item, it is not new. Original packaging or sealing might be broken or removed. The item might be used once for testing. We provide actual photos of the item in this listing.

You can know whether the testing was done in the condition description. This item is in used condition and has been meticulously inspected to ensure it meets our high standards. We pride ourselves on excellent customer service and providing accurate descriptions. The item itself is in working condition.

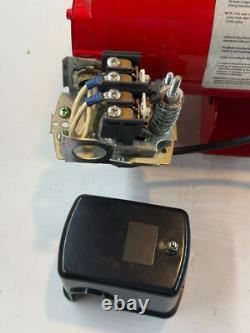

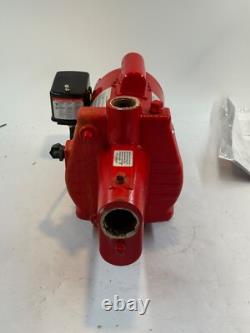

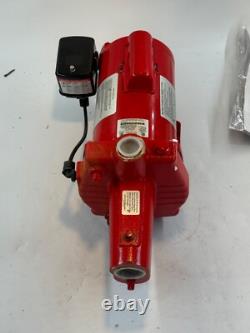

SHALLOW WELL JET PUMP: Red Lion Premium Cast Iron Shallow Well Jet Pump features a 1-1/4" FNPT suction intake and 1" FNPT outlet discharge; 1 HP pump can draw up to 23 gallons per minute. BUILT TO LAST: Rugged cast iron casing and volute for long life and high-efficiency; glass-filled thermoplastic impeller and diffuser for durability. HEAVY DUTY MOTOR: runs on either 115 or 230 volts; voltage must be selected to match incoming power source; Includes a capacitor for increased starting power; CSA listed in USA and Canada. INCLUDES: a factory pre-set 30/50 pressure switch that produces a working maximum pressure of 50 PSI and pressure gauge. SPECIFICATIONS: 1 HP, 17.6 Amps at 115 Volts; 8.8 Amps at 230 Volts; 1-1/4-inch FNPT intake; 1-inch FNPT discharge; Max Pressure = 65 PSI; Max Head = 150 Ft.

RJS-100-PREM Shallow Well Jet Pump (115/230 Volt, 1.0 HP). Pump is designed for shallow wells bringing fresh potable water into your home, farm, or cottage.

At 30 PSI, this 1.0 HP pump delivers 23.2 GPM at a depth of 5-ft, 19.5 GPM at a depth of 10-ft. And 13.3 GPM at a depth of 25-ft. Dual voltage 115/230 Volts - comes factory set for 230 Volts but can be easily switched for 115 Volt installation. 17.6 Amps at 115 Volts; 8.8 Amps at 230 Volts. 23.2 GPM at 5-ft.

Suction lift; 19.5 GPM at 10-ft. Suction lift; 13.3 GPM at 25-ft. To properly select a pump, determine the. Or GPM (gallons per minute) you require. Count the number of fixtures including all faucets (including outside faucets unless those use a different water source), toilets, and water consuming appliances.

Do not include water treatment appliances such as a hot water tank or water filter. Each fixture counts as 1 GPM. Example: a house with one full bathroom sink, tub/shower, toilet, kitchen sink, basement sink, outside facet, washing machine and dishwater = 8 fixtures = 8 GPM. (found in the same locations as where you found your fill rate). Assuming you are using a 30/50 pressure switch, look at the 30 PSI information for the pump to determine the pump's performance at your water level at 30 PSI.

We have provided this information for you in the specifications found above. Look at the pump's performance at the depth at 30 PSI and compare it to your usage and pumping water level.

Than the pump's performance. If this isn't the pump you are looking for, visit the Red Lion store under Clean Water to find other pumps that may be more suitable. The link is found at the top of the page. Also determine the well's.

This can be found in your well driller's report, or possibly on a label beside the pump's power supply or control box or written in the existing pump's manual. If you can't find that information, we recommend contacting a well driller, who can come out and provide you with a well driller's report. If the Usage (calculated earlier) is. GREATER THAN THE FILL RATE. There's a risk that the well could run dry. To address this, we recommend installing a. This will shut the pump off if the well runs dry or loses pressure, protecting your investment. The switch will have to be reset (prime the pump and hold the level down to restart the pump) until the pump kicks in and this only has to be done if the switch shuts off the pump. Auto start options are available through professional installers/contractors if this needs to be done often. Additional instructions, safety tips, and troubleshooting tips are found in the Owner's Manual.

4 OUT OF 5 STARS. In level of difficulty (5 being most difficult). Electrical wiring is required along with precise measurements for cutting the piping. We strongly recommend hiring a licensed jet pump installer or contractor with jet pump installation experience for this installation. Which means it will work with both 115 Volt and 230 Volt power sources.

The voltage selection indicator on the pump. PRE-SET for 230 Volt operation.

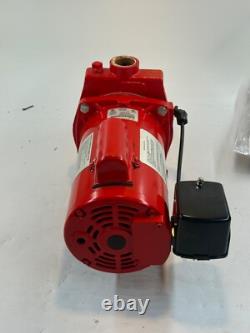

To use the pump for 115 Volt installation, the voltage indicator on the pump must be changed to 115 Volts. Instructions for changing the voltage are in the Owner's Manual. A small motor cover is located on the back end of the pump's motor and must be removed with a screwdriver. Once the cover is removed, you will see a black voltage change device with a white arrow pointing to 230. Do not remove any wires, simply lift the black voltage change device and move to the right and re-seat the device on the prongs so that the arrow is pointing to 115.

See Owner's Manual for illustration. USE PTFE tape on all pipe thread and ensure the the suction and discharge lines are completely. Otherwise the pump will lose prime and will be extremely noisy (called cavitation). (not included) should be installed in the well unless a well point is used. If replacing the pump, always check the condition of the foot valve at the same time as this might have been the contributing factor why your previous pump failed.

If a well point is used, a. (not included) should be installed on the suction line which keeps the pump primed and prevents rapid cycling. See the owner's manual for instructions on priming the pump as instructions are different depending on whether you are using a foot valve or check valve.
