Red Lion RL-SPRK150 115/230 Volt, 1.5 HP, 71 GPM Cast Iron Sprinkler/Irrigation

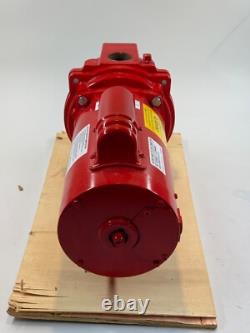

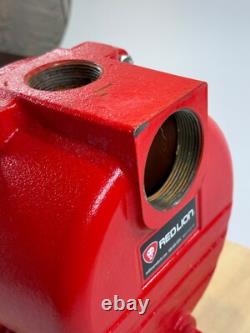

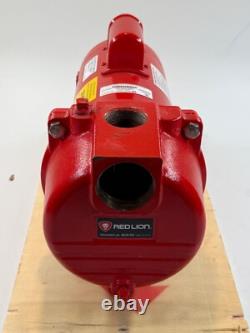

Red Lion RL-SPRK150 115/230 Volt, 1.5 HP, 71 GPM Cast Iron Sprinkler/Irrigation Pump with Thermoplastic Impeller, Red, 97101501. Disclamer - this is an open box item, it is not new. Original packaging or sealing might be broken or removed. The item might be used once for testing. We provide actual photos of the item in this listing.

You can know whether the testing was done in the condition description. This item is in pristine condition and has only been opened to verify contents and functionality. Condition: This item is essentially brand new, with no signs of wear or use.

It has been meticulously inspected to ensure it meets our high standards. We pride ourselves on excellent customer service and providing accurate descriptions. The item itself is in perfect condition and has not been used. 1.5 HP Sprinkler/Irrigation Pump.

The RL-SPRK150 is designed for residential multiple sprinkler head irrigation systems and can handle up to. Per zone or 7 sprinkler heads with 3/4 fittings per zone. At 30 PSI at 5' lift with a maximum pressure of. " data-position="triggerHorizontal" style="box-sizing: border-box; display: block; border: 2px solid rgb(255, 255, 255); background: rgba(145, 145, 145, 0.4); width: 35px; height: 35px; border-radius: 50%; outline-style: none; cursor: pointer;>. RL-SPRK150 1.5 HP Sprinkler Pump Technical Specifications.

1.5 HP 115/230 Volt Motor. Comes factory set for 230 Volts but can be easily switched for 115 Volt installation.

18.6 Amps at 115 Volts; 9.3 Amps at 230 Volts. Flow at 30 PSI (5' Lift). Maximum 14 Sprinkler Heads with 1/2" Fittings; Maximum 7 Sprinkler Heads with 3/4" Fittings. Cast iron casing with glass filled thermoplastic impeller. The easiest way to select the proper pump for the job is to determine how many sprinkler heads and what size pipe is used.

If 1/2 pipe is used, the formula is GPH at 30 PSI divided by 3. If 3/4 pipe is used, the formula is GPH at 30 PSI divided by 6. We have done the calculations for you and the information can be found in both the technical specifications and the pump comparison chart found on this page.

This pump is rated 4 out of 5 stars in level of difficulty (5 being most difficult). Electrical wiring is required along with precise measurements for cutting the piping. This pump is designed to work with a pump start relay and a timer not included. We strongly recommend hiring a sprinkler pump installer or contractor with sprinkler installation experience for this installation. Which means it will work with both 115 Volt and 230 Volt power sources.

The voltage selection indicator on the pump. PRE-SET for 230 Volt operation. To use the pump for 115 Volt installation, the voltage indicator on the pump must be changed to 115 Volts. Instructions for changing the voltage are in the Owner's Manual.

A small motor cover is located on the back end of the pump's motor and must be removed with a screwdriver. For the 1.5 HP model, once the cover is removed, you will see a black voltage change device with a white arrow pointing to 230.

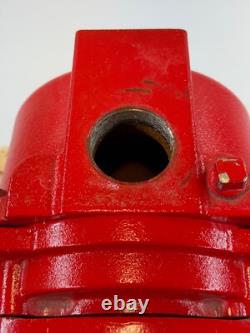

Do not remove any wires, simply lift the black voltage change device and move to the right and re-seat the device on the prongs so that the arrow is pointing to 115. See Owner's Manual for illustration. USE PTFE tape on all pipe thread and ensure the the suction and discharge lines are completely. Otherwise the pump will lose prime and will be extremely noisy (called cavitation). Remove the priming port plug at the top of the unit.

Open the discharge valves on the discharge side of the pump. Fill the pump with water through the priming port.

Allow trapped air to escape for a few minutes, then add more water until the pump and line is full. Replace the priming port plug and tighten with a wrench. (not included) should be installed on the discharge line to keep the pump primed and a. Should be used on the intake line to keep debris from entering the pump.

Additional instructions, safety tips, and troubleshooting tips are found in the Owner's Manual.
